Removing the camber control arm
NOTE:
RISK OF DAMAGE
Damage to the air suspension strut .
Moving the vehicle while the air suspension struts are not completely filled results in damage to the air suspension strut .
Damage to the air suspension strut .
Moving the vehicle while the air suspension struts are not completely filled results in damage to the air suspension strut .
- Make sure that the air suspension struts are completely filled. The residual pressure in the air suspension strut is not sufficient.
- Activate and fill the air spring system before moving the vehicle.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to IF INSTALLED: DEACTIVATING THE AIR SPRING SYSTEM .
- Refer to REMOVING THE REAR LEFT WHEEL .
- Refer to REMOVE THE COVER OF THE CAMBER CONTROL ARM .

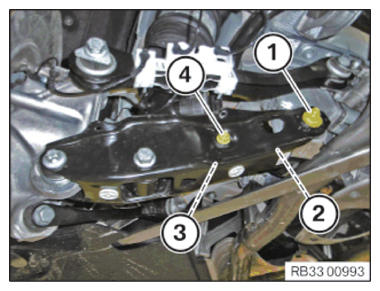

- Release the nut (1) and remove the eccentric washer.
- Pull out the eccentric screw (2).
- Release nut (4).
- Pull the screw (3) out to the front.
- Loosen nuts (1) and (2).
- Pull out screws (3) and (4).
- Remove the camber arm (5).
