Installing window frame trim of rear door

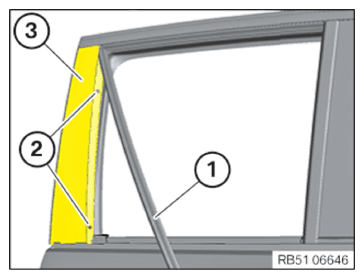

• Feed in and correctly position the window frame trim (3).
• Tighten screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

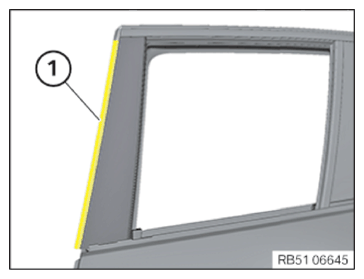

• Mount the rubber window seal (1).
• Mount the rubber window seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR  .
• Refer to INSTALLING REAR DOOR TRIM PANEL  .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
