Remove rear bumper panel
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, the component may be repainted only in compliance with the repair specifications described in the service information "Standards for refinishing paint with a sensor system".
No stickers or films (transparent or colored) may be affixed in the transmission areas of the radar sensors.
If there are no radar sensors fitted, the component may be painted.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is present on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE REAR DOOR SILL COVER STRIP (ON ELECTRICAL REAR SEAT) .
- Refer to REMOVING RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
- Refer to REMOVING THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVE THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (ALL EQUIPMENT VERSIONS) .
- Refer to REMOVING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANEL .
- Refer to REMOVING REAR REFLECTOR .
NOTE:
Perform the steps on the right and left side.

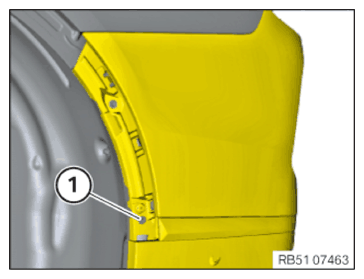

- Loosen screw (1).
NOTE:
Perform the steps on the right and left side.

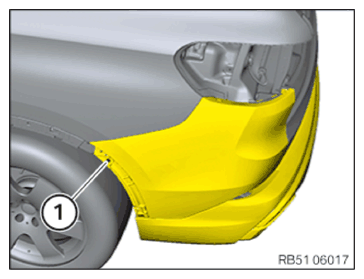

- Release wheel arch trim (1) in area of bumper panel from latch mechanisms.
- Unclip wheel arch trim (1) from clip (2).
NOTE:
Perform the steps on the right and left side.

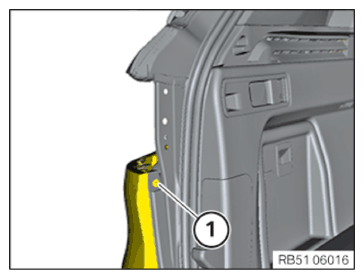

- Loosen screw (1).
- Release bumper panel from the latch mechanisms in the area of the side panel.

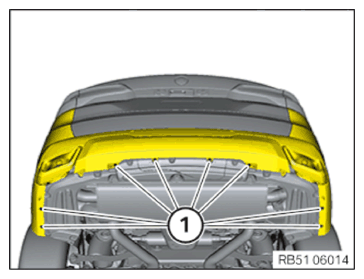

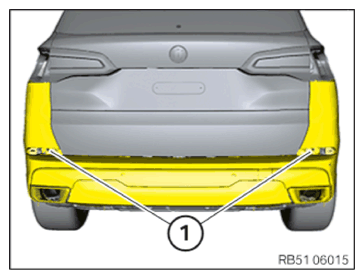

- G07:
Loosen screw (1).

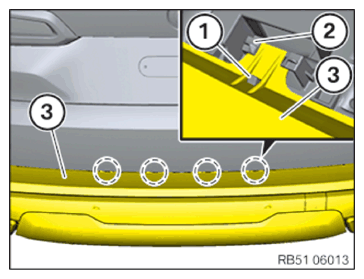

- Press down the snap-in lugs (1) and pull out the bumper cover (3) from the guides (2).
- Guide out the bumper panel (3) and in this process, unlock and disconnect all plug connections.
Remove bumper panel (3).
