Removing The Bottom Right Tailgate Hinge

Fold the insulation (1) to the side.
Remove the seal plug (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

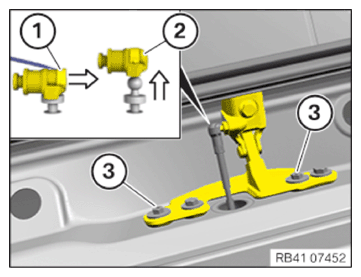

Disassemble the ball socket.
Observe disassembly sequence:
1. Push clamp (1) in the direction of the arrow with a screwdriver.
2. Lift the ball socket (2) off of the ball hub.
3. Push back the clamp (1).
Loosen screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the screws (1) and remove the hinge (2).

Courtesy of BMW OF NORTH AMERICA, INC.
