Installing The Lower Left Trunk Lid Hinge

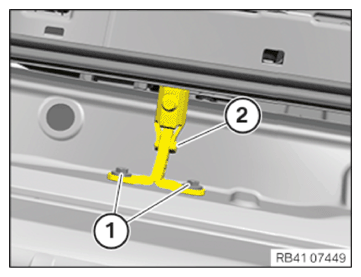

- Install hinge (2) and tighten screws (1).TIGHTENING TORQUE SPECIFICATIONS
Lower section of tailgate to hinge Hexagon screw M8 tightening torque

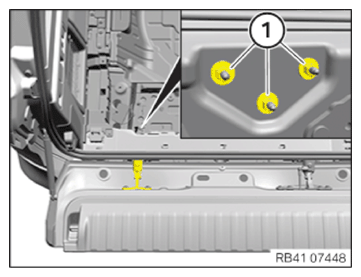

19 Nm - Insert and tighten the nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Hinge of lower section of tailgate to body Combination hexagon nut M8 tightening torque

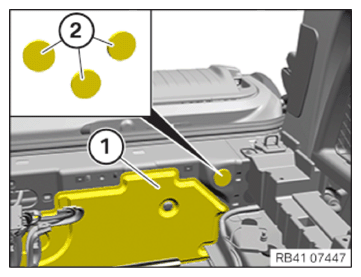

19 Nm - Fold the insulation (1) to the side.
- Install seal plug (2).
