Installing The Bottom Right Tailgate Hinge

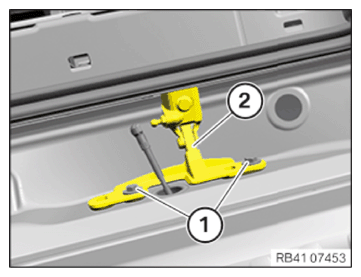

• Install the hinge (2) and tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Lower section of tailgate to hinge
  Hexagon screw M8
  	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

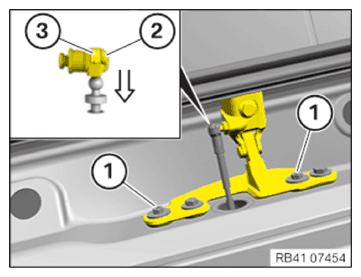

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Deflection to lower section of tailgate
  Hexagon screw M8
  	tightening torque  19 Nm

• Place ball socket (2) on the ball hub on the tailgate hinge and engage using force.
• Check the clamp (3) is fitted correctly.

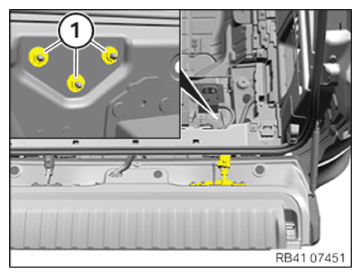

• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATIONS



  Hinge of lower section of tailgate to body
  Combination hexagon nut M8
  	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

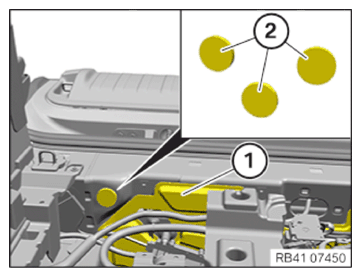

• Fold the insulation (1) to the side.
• Install seal plug (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ADJUSTING BOTH BOTTOM TAILGATE HINGES .
• Refer to 61 21 BATTERY WITH HOLDER .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE BATTERY COVER .
