Installing Left Tailgate Hinge

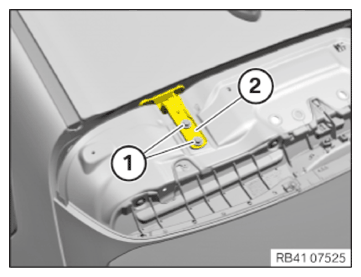

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Upper section of tailgate on hinge
Hexagon screw M8	tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

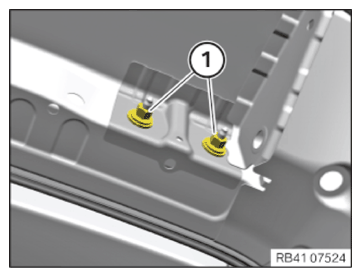

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Hinge of upper section of tailgate to body
Combination hexagon nut
	tightening torque 56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

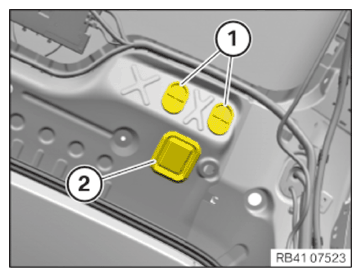

Install the seal plug (1) and the sealing cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
