Adjusting The Lower Section Of Tailgate

Preliminary work

Further information is available.

NOTE: RISK OF DAMAGE
Damage to the spindle drive.
Shifting the trunk lid manually can damage the spindle drive.

Only shift trunk lid slowly hand force.

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see BODY DIMENSIONS .

NOTE: Perform the steps on the left and right side.

Open the lower section of tailgate.

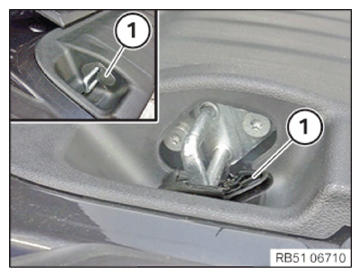

Release the rubber cover (1) and fold down as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

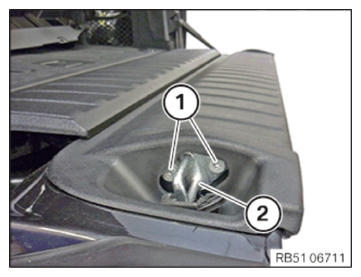

Slacken the screws (1) until the striker (2) can be moved.

Courtesy of BMW OF NORTH AMERICA, INC.

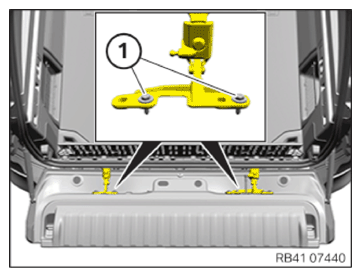

Slacken the screws (1) until the lower section of tailgate can be moved.
Adjust tailgate height and lateral positioning.

Courtesy of BMW OF NORTH AMERICA, INC.

Check
Check the gap dimensions (arrowed) between trunk lid and adjacent components.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Gap dimensions do not correspond to the specifications.

Measure
- Adjust trunk lid.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Lower section of tailgate to hinge
Hexagon screw M8
	tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ADJUST THE STRIKER FOR LOWER SECTION OF TAILGATE LEFT OR RIGHT .
