Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see 4100... REPAIR TECHNIQUES, REPAIR STAGE 2 (ALL X5 MODELS, 2019-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Further information is available.

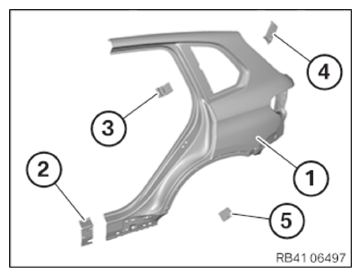

- Prepare the following new parts (see applicable BMW Parts Catalog):
Rear wall (1)
Reinforcement plate, door sill (2)
Reinforcement plate, C-pillar (3)
Reinforcement plate, D-pillar (4)
Reinforcement plate, universal (5)
Plastic nut
NOTE: TECHNICAL INFORMATION
For additional information see 4100... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (ALL X5 MODELS, 2019-2022) . - Supply the following consumables:
Material Quantity Adhesive K5 (195 ml) 1 Adhesive K5 (50ml) 1 Blind rivet N3 15 Punch rivet N4 40 Punch rivet N5 10 EMC screw 3 Cleaning agent R1 1 Cleaning agent R2 1 Cavity protection wax remover Sealing compound D2
