Installing The Left Front Side Panel

Further information is available.

• Install the side panel in the sequence shown with the help of a second person.

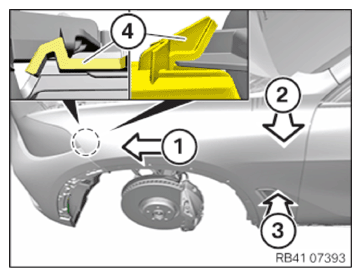

• Position side panel (1) on headlamp. When doing this, make sure that detent and guide (4) are in proper installation positions.
• Position side panel in the area of the A-pillar (2) and bring it into contact at the bottom (3).
• Screw in all screws on the side panel until it is just about still possible to shift the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see BODY DIMENSIONS .

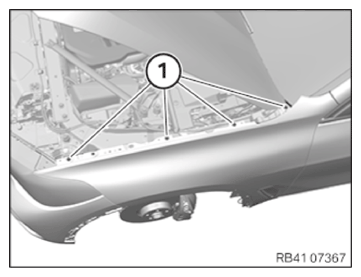

• Adjust gap dimensions.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

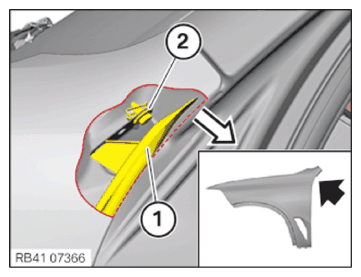

• Open the front door.

  Pull the sealing (1) down slightly in the direction of the arrow.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

• Close front door

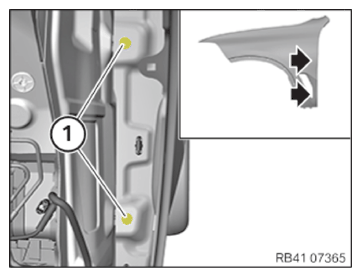

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

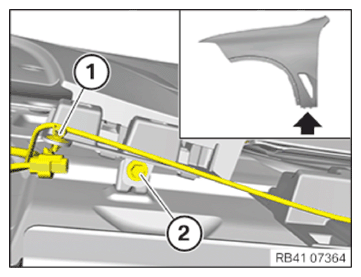

• Secure cable to side panel holder (1).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

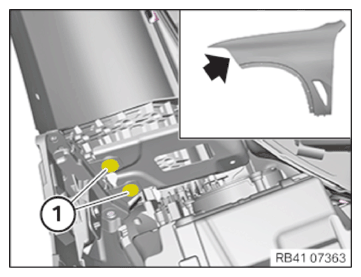

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the bumper cover (2) upwards into the detents.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to holder for side panel
  Screw M6
  	Tightening torque  8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

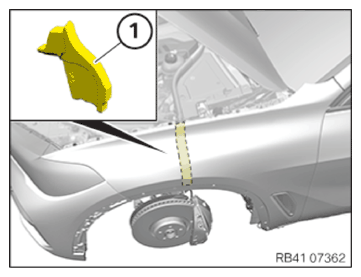

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

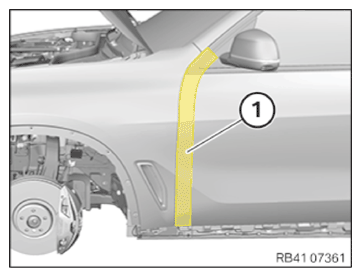

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

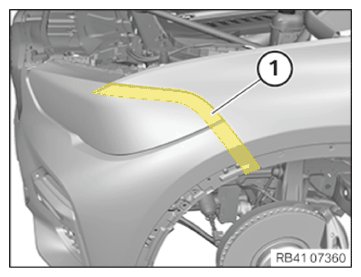

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to INSTALLING THE DOOR SILL TRIM PANEL .
• Refer to INSTALL THE REAR DOOR .
• Refer to INSTALLING FRONT WHEEL ARCH TRIM .
• Refer to INSTALL THE COVER IN THE ENGINE COMPARTMENT ON TOP .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
