Installing The Roof Outer Skin

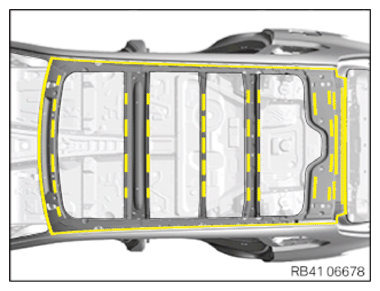

• Pre-clean the bonding surfaces (marked yellow) on the vehicle and the new part with a cleaning agent R2.
  CONSUMABLE SPECIFICATIONS



  		1
  Cleaning agent R2	500 ml	83190417324

• Clean bonding surfaces (marked yellow) on the vehicle and on the new part with a cleaning agent R1.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R1

  100 ml, Bottle

  83192211217

  Courtesy of BMW OF NORTH AMERICA, INC.

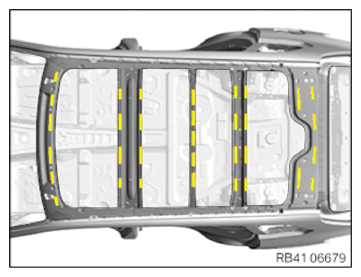

• Apply sealant D2 in the areas marked in yellow similar to the series.
  CONSUMABLE SPECIFICATIONS



  Sealant D2

  290 ml

  83425A547B9

  Courtesy of BMW OF NORTH AMERICA, INC.

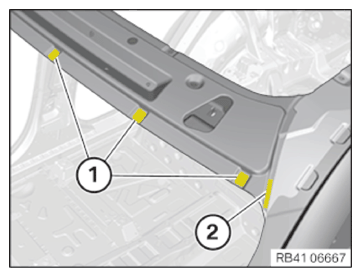

• On the front convertible top brace, top up all the flange recesses (1) with adhesive K5 and smooth it. (level compensation)
• On both step increments, (2) left and right, apply a 25 mm long adhesive bead and smooth out. (level compensation)

  Apply adhesive so that all flange sections and step increments form one level for the remaining bonding surface.

  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  50 ml

  83192158654

  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  195 ml

  83195A59935

  Courtesy of BMW OF NORTH AMERICA, INC.

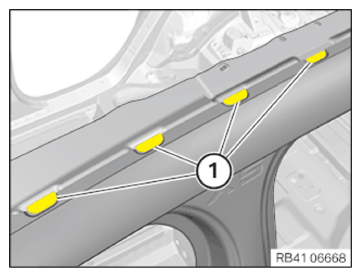

• At the left and right roof frames, top up all the flange recesses (1) with adhesive K5 and make them smooth (level adjustment).

  Apply adhesive so that all flange sections form one level for the remaining bonding surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

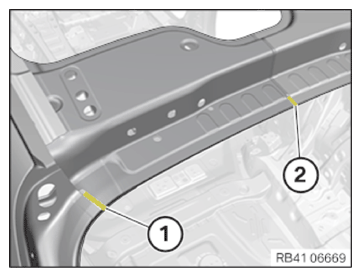

• On the rear convertible top brace on the outer gradations (1) on the left and right, apply a 60 mm long adhesive bead with adhesive K5 and smooth it. (level compensation)
• On both step increments (2) left and right, apply a 25 mm long adhesive bead and smooth out (levelling).

  Apply adhesive so that all flange sections and step increments form one level for the remaining bonding surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply adhesive K5 on the bonding surfaces (marked in yellow).
• Place roof outer skin with helpers evenly and centrally on vehicle and adjust to fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the roof outer skin with the bolts M6, nuts and washers at the mounting holes (1) of the roof rails. Hand-tighten the screw connections.

  Do not remove the screw connections until the adhesive has hardened.

  Courtesy of BMW OF NORTH AMERICA, INC.

• In area (1), rivet the roof outer skin with 10 punch rivets N5.
  CONSUMABLE SPECIFICATIONS



  Punch rivet N5  0 5 mm; 5 mm long

  83192158079

  Courtesy of BMW OF NORTH AMERICA, INC.

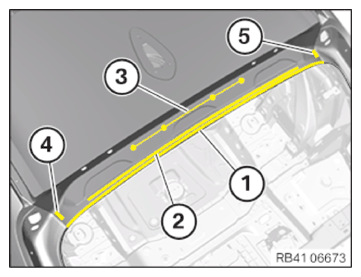

• In areas (1) to (5) rivet the roof outer skin with punch rivets N5.

  Area	Number
  1	10
  2	6
  3	4
  4	1
  5	1

  Courtesy of BMW OF NORTH AMERICA, INC.

• Level out leaked adhesive in the area (1) at all 4 corners of the roof outer skin (2) by spreading.

  Do not leave any sharp edges as this may compromise the tightness of the subsequent windshield and rear window bonding.

• Spread excess adhesive in roof trim strip channel. While doing so, the mounting surfaces of roof trim strip mounting elements may not be coated with adhesive.
• Remove excess adhesive. For that do not use any cleaning agent or solvent!

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
• Seal the EMC screw with the sealant.
  CONSUMABLE SPECIFICATIONS



  Sealant D1 (seam sealing)

  310ml

  83422409985

  NOTE: Perform the steps on the left and right side.

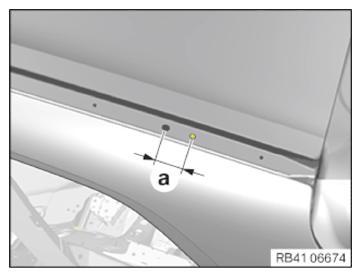

• Install an EMC screw in accordance with dimension a after the adhesive has hardened.

  Dimension (a) = about 45 mm from the center point of the mounting bore of the roof rails.

  CONSUMABLE SPECIFICATIONS



  screw  EMC screw, SF Plus, M5x15

  83190301639

  Courtesy of BMW OF NORTH AMERICA, INC.

  Sealing the roof outer skin

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

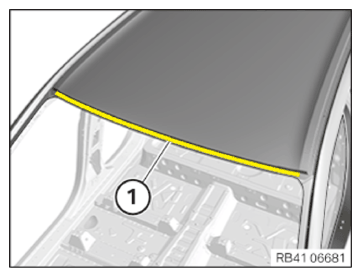

• Seal the roof outer skin on both roof frames with sealant (1), in line with standard production.
  CONSUMABLE SPECIFICATIONS



  Sealant D1 (seam sealing)

  310ml

  83422409985

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
