Install The Outer Section Of The B-Pillar
Further information is available.
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see 4100... WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) (ALL X5 MODELS, 2019-2022) .
Use only approved spot welder for repair.
For additional information see 4100... WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) (ALL X5 MODELS, 2019-2022) .
NOTE:
TECHNICAL INFORMATION
For additional information see 4100... INSTALLING CAVITY SEALING (EXPANDED) (ALL X5 MODELS, 2019-2022) .
For additional information see 4100... INSTALLING CAVITY SEALING (EXPANDED) (ALL X5 MODELS, 2019-2022) .

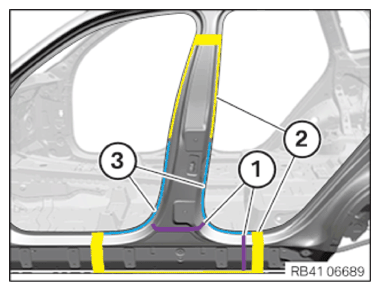

- Apply sealant D1 to the cavity sealing elements (1).CONSUMABLE SPECIFICATIONS
Sealant D1 (seam sealing) 310 ml 83422409985 - Install the new part and reinforcement plates and weld in areas (2) and (3) as per the new part preparation.
Avoid excessive heat input at the cavity sealing elements (1).
Follow-up work
- Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
- Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
