Install B-Pillar With Reinforcement

Further information is available.

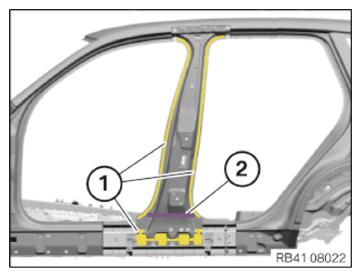

• Install and secure the new parts of the B-pillar with an alignment bracket or a universal fixture.
• Weld new parts in the areas (1).
  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... INSTALLING CAVITY SEALING (EXPANDED) (ALL X5 MODELS, 2019-2022) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply sealant D1 to cavity sealing (2). Install cavity sealing.
  CONSUMABLE SPECIFICATIONS



  Sealant D1 (seam sealing)

  310 ml

  83422409985

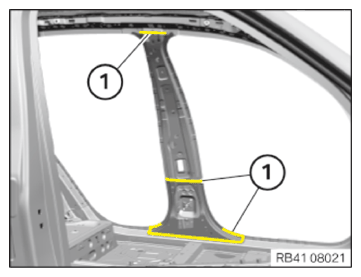

• Weld new parts in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .

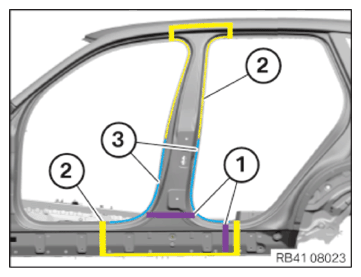

• Apply sealant D1 to the cavity sealing (1).
• Install the new B-pillar outer skin and reinforcement plates and weld in the areas (2) and (3) as per the new part preparation process.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
