Installing The Connection Between Engine Mount And Side Frame

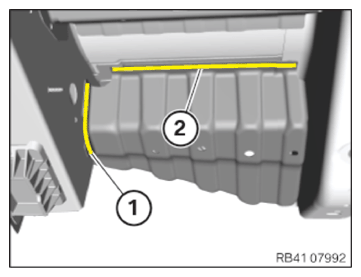

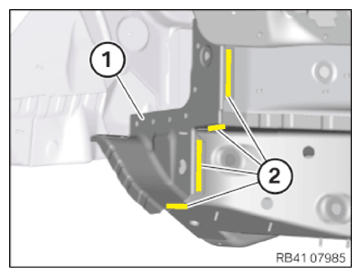

• Install the new part (1) and in weld in the areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

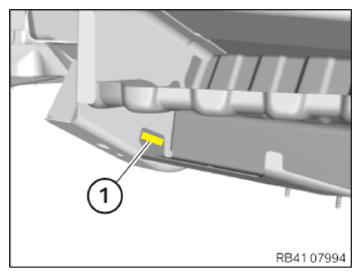

• Weld the new part in the areas (1) and (2).
• In the area (2), pay attention to the spot-welded adhesive joints of the panel above with the floor panel. Avoid excessive application of heat. Cool the area (2) with compressed air as appropriate.

  Courtesy of BMW OF NORTH AMERICA, INC.

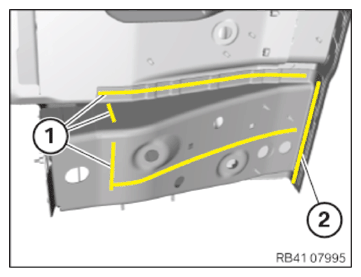

• Install new part (1) and weld in the area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

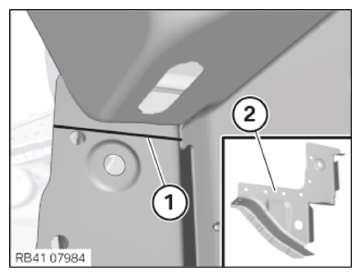

• Weld the new part in the area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

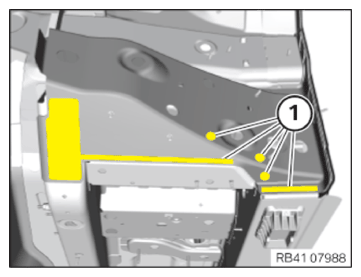

• Install the connecting plate and weld it in the areas (1) and (2).
• In area (2), set the repair spot-welds on the production spot-welds due to the bonded connection behind it.

  Courtesy of BMW OF NORTH AMERICA, INC.

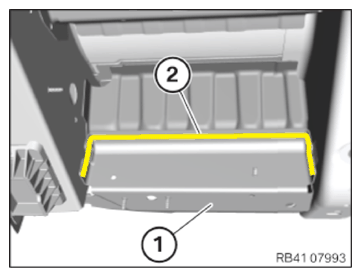

• Weld the new parts in the areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

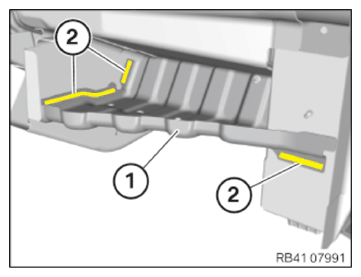

• Weld the new part in the area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

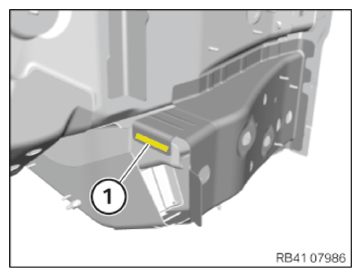

• Install new part (1) and weld in the areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld new part (2) in area of separating cut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
