Installing The Rear Outer Wheel Arch Section

Further information is available.

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K5 to bonding surfaces.
  ADHESIVE SPECIFICATIONS



  Body adhesive K5

  50 ml

  83192158654

• install new part.

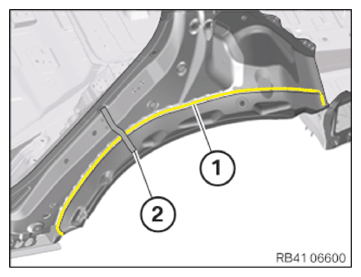

• Rivet the new part in area (1) with blind rivets N3.
  CONSUMABLE SPECIFICATIONS



  Blind rivet N3	83190301421
  Ø 4 mm; clamping area 1-3 mm

  NOTE: TECHNICAL INFORMATION
  For additional information see 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (ALL X5 MODELS, 2019-2022) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply sealant D1 to the new cavity sealing (2). Install cavity sealing (2).
  CONSUMABLE SPECIFICATIONS



  Sealant D1 (seam sealing)

  310 ml

  83422409985

Follow-up work
