Preparing New Part
Further information is available.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see 4100... BMW/MINI BONDING INSTRUCTIONS (ALL X5 MODELS, 2019-2022) .
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see 4100... BMW/MINI BONDING INSTRUCTIONS (ALL X5 MODELS, 2019-2022) .
- Mark the separating cut on the new part according to the separating cut on the vehicle + 20 mm added material and cut.
- Prepare the joint areas for joining by bonded rivet method.
- Adjust the new part in combination with the side panel to fit and secure.

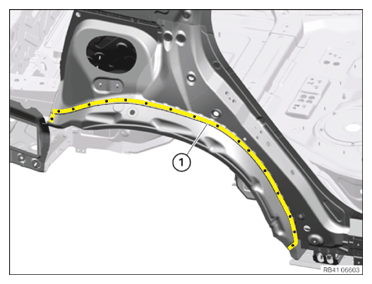

- In area (1) of the bonding surface, set 17 bores with dia 4.2 mm.
Replacing the coarse thread bolts and threaded weld bolts, surface steel
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Take the number and position from the component to be replaced or the installed parts.
- Replace the coarse thread bolt (1) and the threaded weld bolt (2).
Parts: Coarse thread bolt (1), threaded weld bolt (2)
- Weld the coarse thread bolt (1) and threaded weld bolt (2) onto the new part.
