Supplying The New Parts Required
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see 4100... REPAIR TECHNIQUES, REPAIR STAGE 3 (ALL X5 MODELS, 2019-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Further information is available.
- Prepare the following new parts (see applicable BMW Parts Catalog):

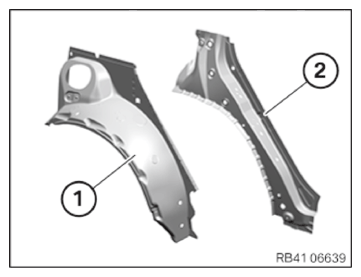

Outer half of rear wheel well (1)
Reinforcement at bottom of C-pillar (2)
Shaped part, outer wheel arch
Shaped part, wheel arch interior
NOTE: TECHNICAL INFORMATION
For additional information see 4100... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (ALL X5 MODELS, 2019-2022) . - Supply the following consumables:
Material Quantity Coarse thread bolt 15 Sealant D1 1 Cavity sealing wax remover
