Supplying The New Parts Required
Prerequisite
- Vehicle is secured on the straightening bench.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see 4100... REPAIR TECHNIQUES, REPAIR STAGE 3 (ALL X5 MODELS, 2019-2022) .
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Further information is available.

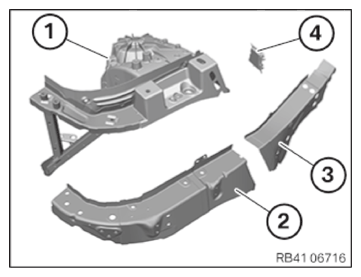

- Prepare the following new parts (see applicable BMW Parts Catalog):
Front spring support (1)
Carrier support for outer wheel arch section (2) ext., carrier support (3)
Wheel arch carrier support shaped part (4)
NOTE: TECHNICAL INFORMATION
For additional information see 4100... OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) (ALL X5 MODELS, 2019-2022) . - Supply the following consumables:
Material Quantity Adhesive K1 1 Blind rivet N1 30 Blind rivet N2 30 Blind rivet N7 5 Punch rivet N5 40 EMC screw 5 Cleaning agent R1 1 Cleaning agent R2 1 Sealant D1 1 Cavity sealing wax remover 1
