Remove Luggage Space Tray And Left Side Rail

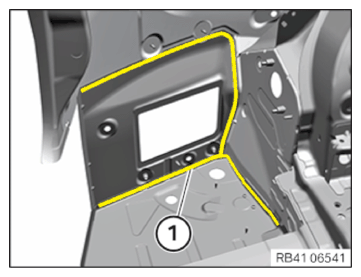

Open welded connections in area (1).
Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

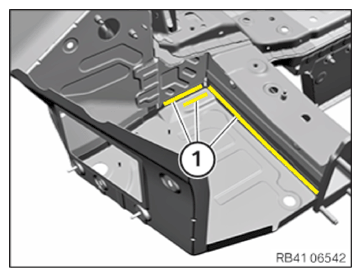

Loosen the welded connections in the areas (1) and remove the luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.

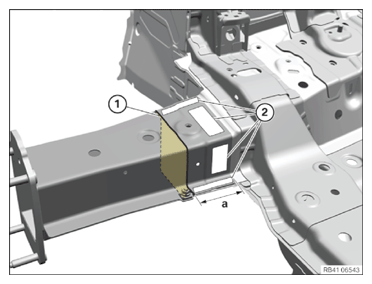

Carry out separating cut (1) in accordance with dimension (a).
Dimension (a) = 85 mm from component edge

Cut through side rail completely and remove it.
Release the welded connections in the areas (2) and remove the section.

Courtesy of BMW OF NORTH AMERICA, INC.

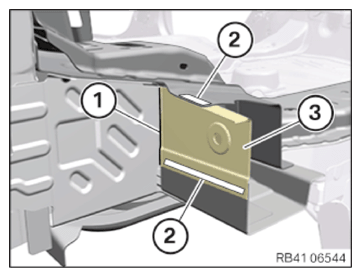

Make the separating cut (1) according to the schematic diagram.
Release welded connections in the areas (2) and remove the section (3) of the side member.

Courtesy of BMW OF NORTH AMERICA, INC.
