Remove The Luggage Compartment Floor, Right

Further information is available.

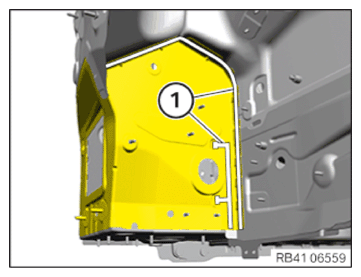

• Open welded connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

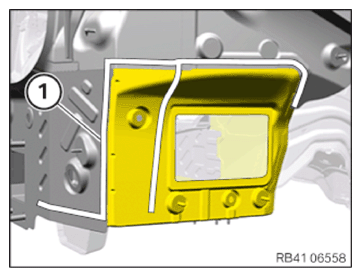

• Release welded connections in areas (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

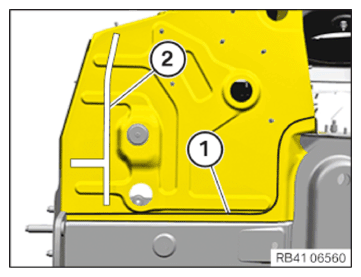

• Perform coarse separating cut (1) as shown.
• Open welded connections in area (2) and remove the support.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

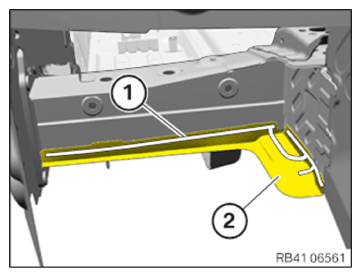

• Release welded connections in areas (1) and remove section (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
