Install the wiring harness section of the transmission wiring harness

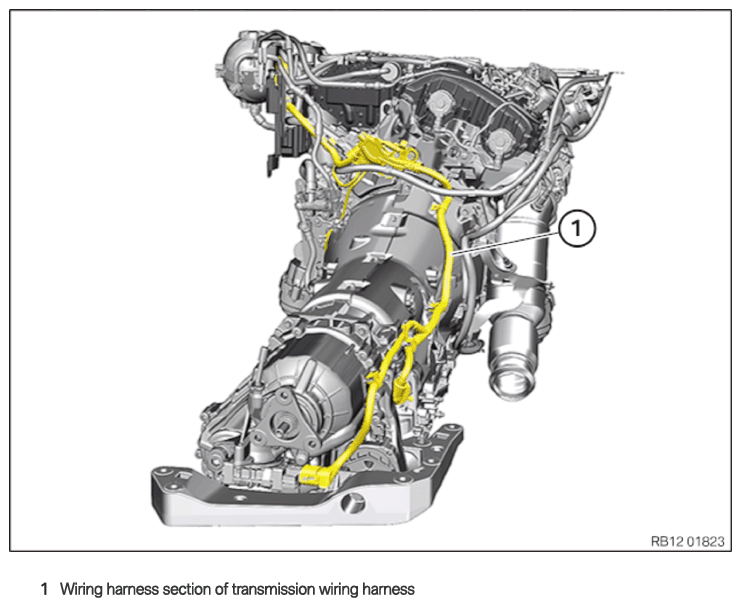

Wiring harness section of transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

Insert and install the wiring harness (1) for the transmission module.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Grounding cable/wiring harness section to transmission
B M6	Tightening torque 8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure the clamps (arrows).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in the wiring harness section (2) of the supply module and install.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the holder (2).
Replace screws (1).
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Holder on the transmission
Torx screw BM8 Replace screws.	Tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the transmission

Move the transmission (3) to the installation position.
Replace screws (2).
Parts: Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Transmission cross member to body
M8	tightening torque 19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the cable with the clamp (1).
Loosening the luggage strap (1).
Remove special tools 2 219 012 and 0 495 498 (23 4 050) .

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (2).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (1) of the transmission wiring harness.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the clamp (2).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Make sure the locking mechanism (2) engages audibly.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque 8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the clamps (arrows).
Insert cable clip (2) in direction of arrow and install.
The lock (1) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and lock cable clip (3).
The cable clip (3) must engage audibly.
Insert cable clip (2) in direction of arrow and install.
The locks (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the connector (1) in direction of the arrow to the holder (2) for the DME control unit and lock it.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the cable clip (3).
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

The connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
Refer to INSTALLING THE TRANSMISSION MOUNTING BRACKET .
Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALLING THE HEAT SHIELDS .
Refer to INSTALLING THE RETAINING PLATES .
Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING THE LEFT AND RIGHT REAR DIFFUSER .
Refer to INSTALLING THE TENSION STRUT AT THE RIGHT REAR AND IF NECESSARY, ON THE LEFT SIDE .
Refer to INSTALLING THE LEFT AND RIGHT UNDERSHIELD (TANK COVER) .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
