Installing the ornamental grille of the bumper panel on the left and right side
Install the ornamental grille on the bumper cover on the side
NOTE:
Description is for left component only. Procedure on the right side is identical.

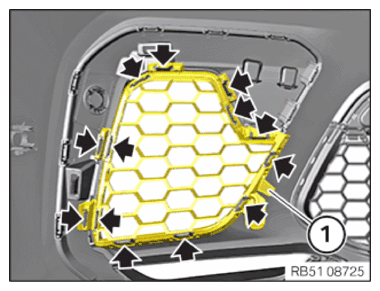

- Correctly position the ornamental grille (1)
and snap into place on the detents (arrows).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
