Installing the instrument cluster (KOMBI)

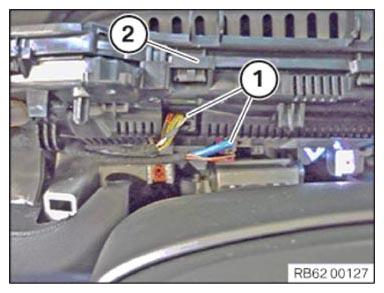

• Connect and lock the connector (1) on the instrument cluster (KOMBI) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

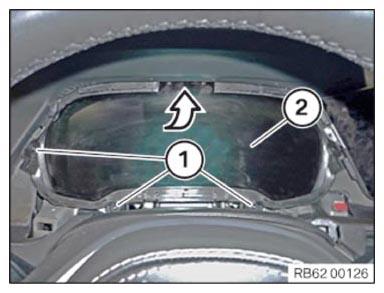

• Guide in the instrument cluster (KOMBI) (2) in the arrow direction.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Instrument cluster (KOMBI) to support
  Screw	tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

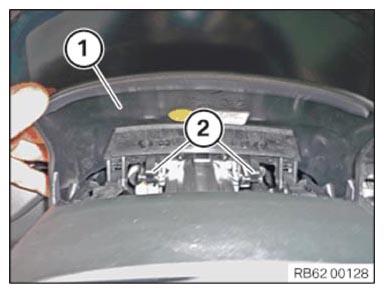

• Position and lock the steering column shroud upper section (1).

  The snap-in lugs (2) must snap in audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
• Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
