Installing the ornamental grille on the center bumper panel

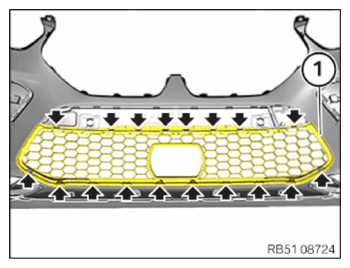

• Correctly position the ornamental grille (1)  and snap to detents into place (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TRIM ON THE FRONT BUMPER COVER .
• Refer to INSTALLING FOG LIGHT SUPPORT .
• Refer to INSTALLING THE TRIM ON THE CENTER ORNAMENTAL GRILLE .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE FRONT NUMBER PLATE .
