Install rear spoiler
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

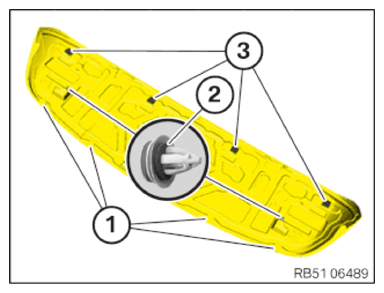

- Check the clips (2) and the mounting elements (3) for damage and replace if necessary.
- Replace the rear spoiler if the guides (1) are damaged.
- Fit and correctly position the rear spoiler (1).
- Engage the rear spoiler (1) towards the front on the clips (2).
- Tighten the screws and install the covers (1).
