Installing the oil-level sensor

• Clean sealing surface on oil sump.

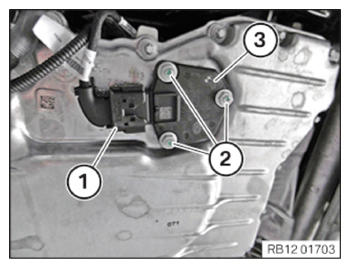

• Position the oil-level sensor (3).
• Tighten nuts (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug connection (1) and lock.

Follow-up work

• Refer to REMOVING THE OIL FILLER CAP .
• Refer to FILLING ENGINE OIL .
• Refer to INSTALLING THE OIL FILLER CAP .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to REPLACING ENGINE OIL LEVEL SENSOR .
• Refer to INSTALLING THE STIFFENING PLATE .
