Remove the front right wheel arch cover front section

NOTE: Description is for left component only. Procedure on the right side is identical.

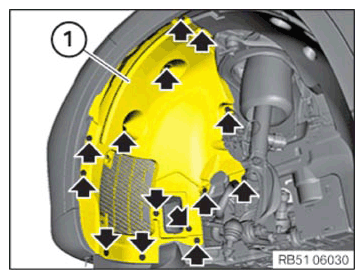

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Remove screws (arrows).
• Feed out the front section of wheel arch cover (1)  and remove.
