Releasing the brake hose and cable
Releasing the brake hose and cable

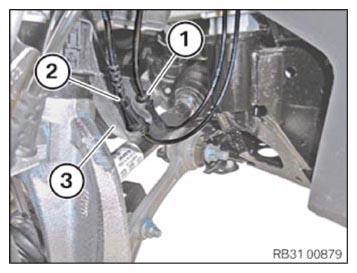

Release the brake hose
(1)
from the holders
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

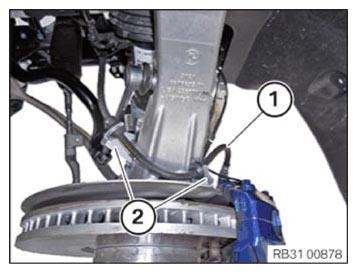

Remove cable
(2)
from holder
(3)
.
NOTE:
Only perform the operation on the left side.
Remove cable
(1)
from holder
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
