Position the mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Position adjustable mount (30) with adapter (60) at the front of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Position adjustable mount (30) with adapter (50) at the rear of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Courtesy of BMW OF NORTH AMERICA, INC.

Position mobile lifting table centrally 2 184 136 under vehicle and jack it up.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
Position adjustable mount (30) with adapter (60) at the front of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
Position adjustable mount (30) with adapter (50) at the rear of the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

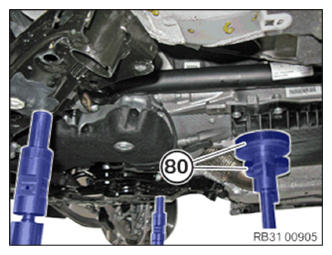

Position mounting elements with the mounts (80) on the automatic transmission and on the right at the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

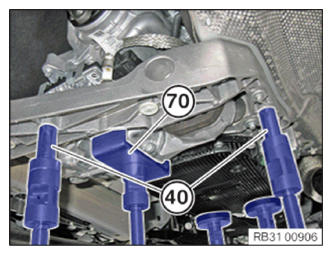

Position the mounting elements with the mounts (40) on the transmission cross member.
Position the mounting elements with the mounts (70) on the transmission cross member.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.
Position mounting for the swivel bearing (1) .
Hand-tighten the bolts (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
