Partially removing the front wheel arch trim (door sill)
Partially removing the front wheel arch trim (door sill)

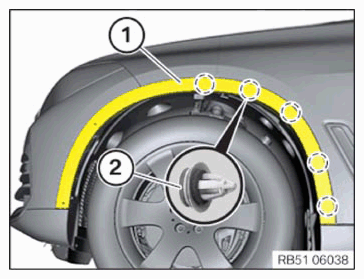

Only for G05/G18/F95:
Release the wheel arch trim
(1)
at the clips
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.

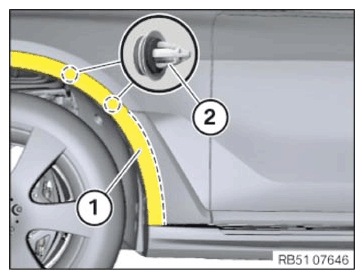

Only for G06/G07:
Release the wheel arch trim
(1)
from the detents in the area of the dotted line.
Release the wheel arch trim
(1)
at the clips
(2)
.
Courtesy of BMW OF NORTH AMERICA, INC.
