Installing the front brake pad wear sensor

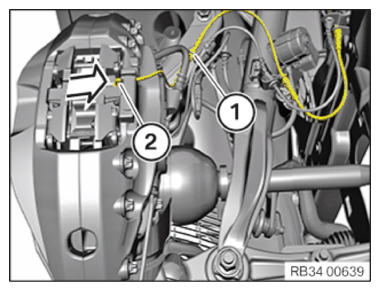

• Attach the cable of the brake pad wear sensor (2) in the holder (1).
• Install the brake pad wear sensor (2) in the arrow direction in the brake pad and ensure its correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

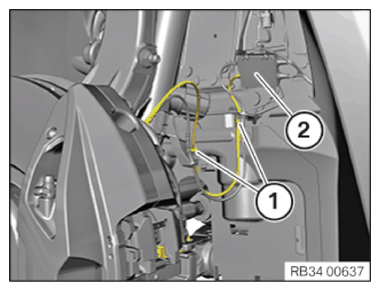

• Attach cable of brake pad wear sensor in holders (1).
• Connect and lock the connector.
• Close sealing cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
