Removing the speaker trim from the left and right central bass
Removing the speaker trim from the center bass
NOTE:
Description is for left component only. Procedure on the right side is identical.

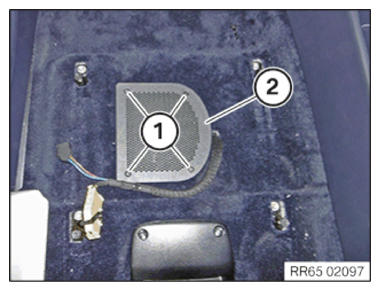

- Loosen screws (1).
- Remove the speaker trim from the center bass (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
