Remove battery cover
Remove battery cover

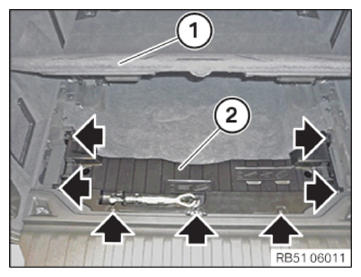

Fold up the luggage compartment floor covering
(1)
.
Release the expanding rivets (arrows) and remove the battery cover
(2)
.
