Disconnecting the coolant hose from the front subframe

NOTE: The following step (s) must be performed if the listed component (s) is/are installed.

Courtesy of BMW OF NORTH AMERICA, INC.

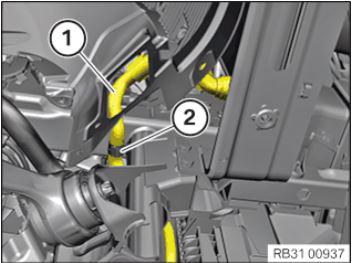

• Release the coolant hose (1) from its holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

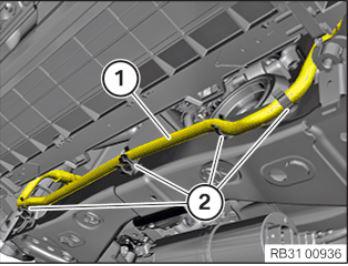

• Remove the coolant line (1) from the holder (2).
