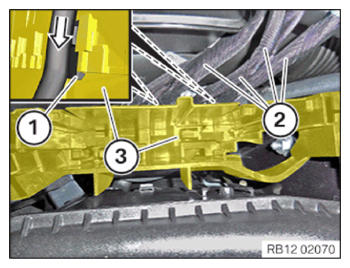

Installing the holder for the DME control unit on the left
- Position the holder (2) for the DME control unit.
- Insert and install the holder (1).
The lock (arrow) must audibly engage.
- Insert and install the holder (3) for the DME control unit.
- Connect the wiring harness section (2) to the holder (3) in the arrow direction and lock.
The locks (1) must engage audibly.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Control unit holder | ||
|---|---|---|
| Hexagon screw | Tightening torque | 8 Nm |
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Secure the clamp (1).
Follow-up work
- Refer to INSTALLING THE DME CONTROL UNIT OF CYLINDERS 5 TO 8 .
- Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
