Installing wiring harness section for ignition system of bank 2
- Feed in and position the wiring harness section for the ignition system.

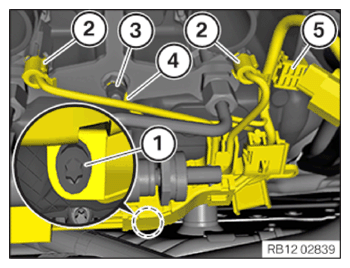

- Clip in the wiring harness mounting (5).
- Position the cable head (4).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable to hold-down device | ||
|---|---|---|
| Nut M5 | tightening torque | 5.5 Nm |

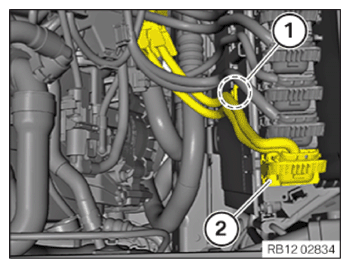

- Connect connectors (2) and lock.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct | ||
|---|---|---|
| M6x16 screw | tightening torque | 8 Nm |
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Cable duct | ||
|---|---|---|
| M6x16 screw | tightening torque | 8 Nm |

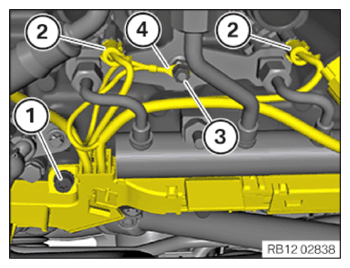

- Unlock and disconnect the plug (2).
- Tighten nut (3).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable to hold-down device | ||
|---|---|---|
| Nut M5 | tightening torque | 5.5 Nm |
- Lay the cable head (4) to one side.

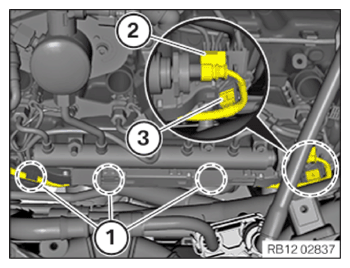

- Clip in the sensor wiring harness mountings in the areas (1).
- Connect connectors (2) and lock.
- Clip in the wiring harness mounting (3).

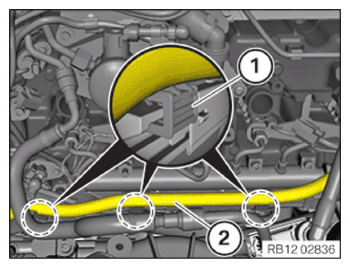

- Position the transmission wiring harness (2).
- Clip in wiring harness mountings (1).
- Clip the wiring harness mounting (2) on the bar of the cylinder head cover (1).

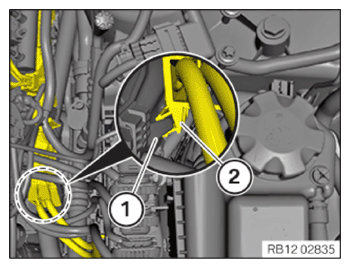

- Connect connectors (2) and lock.
- Unclip the wiring harness mounting (1) downwards.

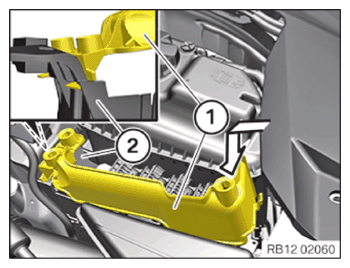

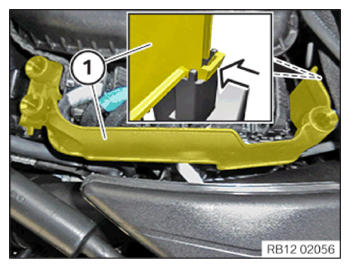

- Feed in cover (1) in direction of arrow into the bracket (2) and install.
- Lock cover (1) (arrow).
Follow-up work
- Refer to INSTALLING COVER FOR THE LEFT DME CONTROL UNIT .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALL THE IGNITION COILS OF CYLINDER BANK 2 .
- Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
