Installing intake camshaft sensor of cylinder bank 1

Checking the sealing ring on the camshaft position sensor

Check

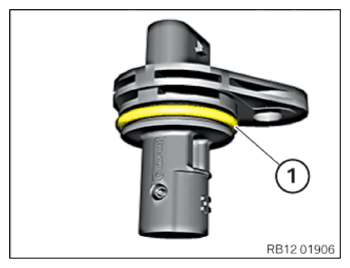

• Check the O-ring (1) on the camshaft position sensor for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» O-ring (1) damaged

Measure

• Replace O-ring (1).

Parts:  O-ring

Result

» O-ring (1) not damaged.

Measure

• Continue the repair in the next step.

• Coat O-ring on the camshaft position sensor with motor oil.

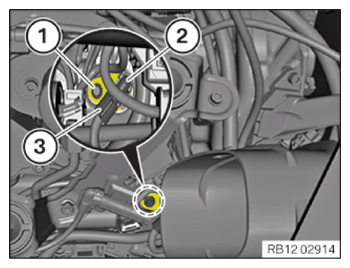

• Position the intake camshaft sensor of cylinder bank 1 (2).
• Tighten down screw (1).

Camshaft position sensor
M6x16 screw	Tightening torque	8 Nm

• Connect plug connection (3) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
