Remove the intake camshaft sensor of cylinder bank 2

Preliminary work

• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE INTAKE FILTER HOUSING ON THE LEFT .

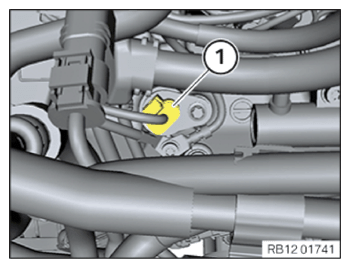

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

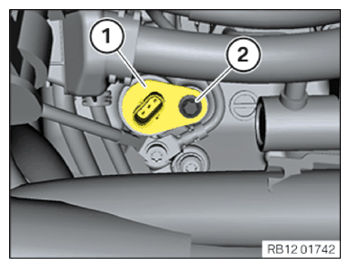

• Loosen screw (2).
• Remove the intake camshaft sensor of cylinder bank 2 (1).

Courtesy of BMW OF NORTH AMERICA, INC.
