Install the left camshaft position sensor of the exhaust camshaft
- Check the O-ring (1) for damage and replace if necessary.
- Coat sealing ring (1)
with lubricant.

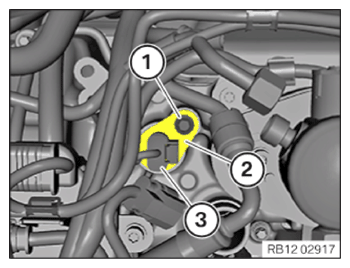

- Guide in camshaft position sensor (2) of the exhaust camshaft on the left and install it.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft position sensor | ||
|---|---|---|
| M6x16 screw | Tightening torque | 8 Nm |
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
Follow-up work
- Refer to SECURING THE FUEL SUPPLY LINE ON THE LEFT .
- Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 5 AND 6 .
- Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
