Installing the flap in the left/right luggage compartment trim panel

Check

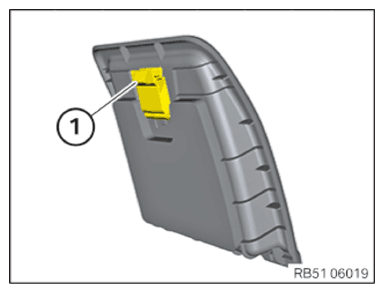

• Check the locks (1) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The fastening (1) is damaged.

  Measure

  • Replace flap.

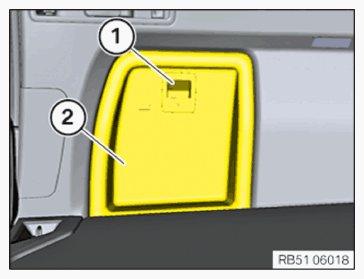

• Position the flap (2) in the luggage compartment trim panel and lock in place using the handle (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
