Body Equipment -- Repair (2 Of 2) X5 M (F95)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 491 Removing refitting/replacing rear engine undercover (X5 M)
>>
Installing the frame
Installing the frame

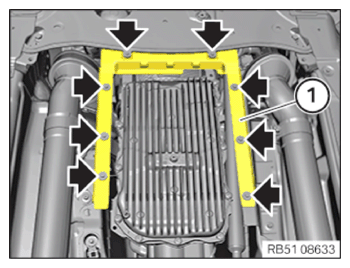

Guide the frame (1) in and position it correctly.
Tighten the screws (arrows).
TIGHTENING TORQUES SPECIFICATION
Undershield/frame
Hexagon screw
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
