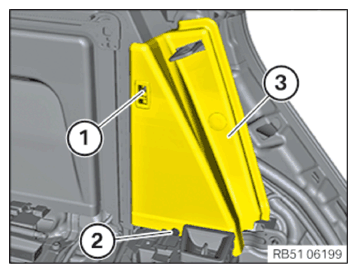

Installing the luggage compartment trim panel on the side panel on the left

• Position luggage compartment trim panel (3) correctly.
• Install the expanding rivet (2).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Luggage compartment wheel arch trim panel on body
  screw	Tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

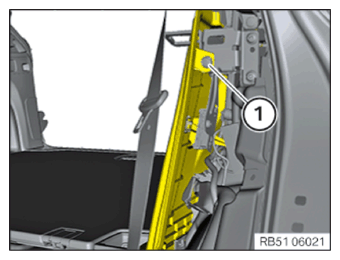

• Install the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BACKREST SIDE SECTION .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING (ELECTRICAL ROLLER COVER FOR LUGGAGE COMPARTMENT) .
