Body Equipment -- Repair (2 Of 2) X5 M (F95)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 138 Removing and installing/replacing anti-slip rail (X5 M)
>>
Remove the automatized slide & anti-slip bars
Remove the automatized slide & anti-slip bars
Precondition
Luggage compartment floor covering is raised.

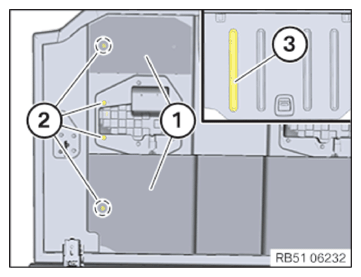

Cut in sound insulation (1) in the area of the screws (2) so that the screws are accessible (2).
Release the screws (2) and remove the automatized slide & anti-slip bars (3) towards the front.
