Installing the rear power window switch

When replacing the power window switch: remounting switch trim

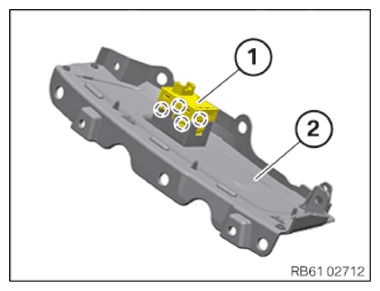

• Loosen the power window switch (1) on both sides at the marked points.
• Remove power window switch (1) from the switch trim (2).
• Replace power window switch (1).

  Parts:  Power window switch

• Position the power window switch (1) on the switch trim (2) and clip in on both sides in the marked areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread the power window switch with the trim (2) into the door trim (3).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Repair screw to door trim panel
  TS4x10 screw	tightening torque	1.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM .
