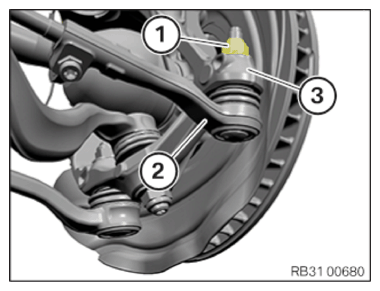

Securing the tie rod on the swivel bearing

• Position the track rod (2) on the swivel bearing (3).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1).
  NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUES SPECIFICATION

Tie rod end to swivel bearing
M14 Replace nut.	Tightening torque	165 Nm
