Secure the tie rod to the right on the swivel bearing
NOTE:
Description is for left component only. Procedure on the right side is identical.
Securing the tie rod on the swivel bearing

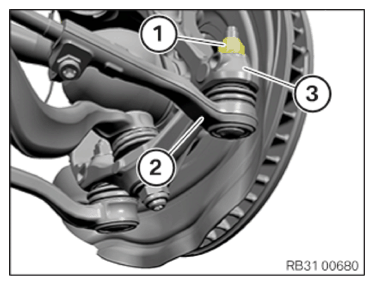

- Position the track rod (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1).NOTE: Counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Tie rod end to swivel bearing | ||
|---|---|---|
| M14 Replace nut. |
Tightening torque | 165 Nm |
