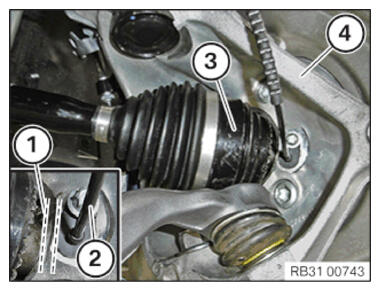

Position the output shaft on the swivel bearing

• Make sure there is sufficient distance (1) between the wheel speed sensor (2) and the output shaft (3).
• Turn swivel bearing (4) outwards.
• Position output shaft (3) on swivel bearing (4)

Courtesy of BMW OF NORTH AMERICA, INC.
