Installing the rear brake pad wear sensor

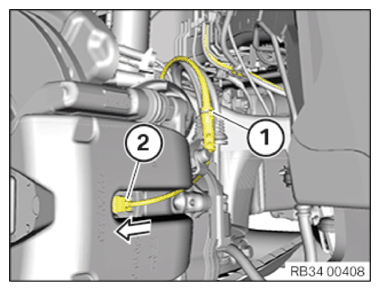

• Install brake pad wear sensor (2) in the brake pad in the arrow direction and ensure that it fits correctly.
• Hook the cable of the brake pad wear sensor (2) into the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

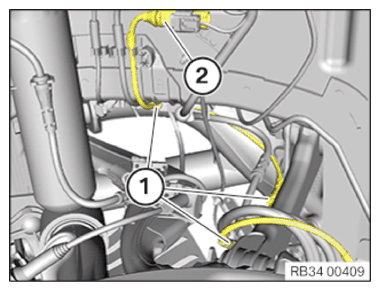

• Hook the cable of the brake pad wear sensor into the holder (1).
• Connect connectors (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

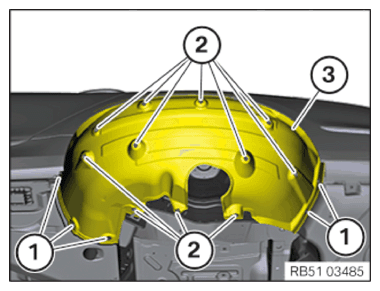

• Insert removed nuts (2) and tighten.

TIGHTENING TORQUES SPECIFICATION

Wheel arch cover
Screw	3 Nm
Plastic nut	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
