Installing the oxygen sensor monitor
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00...
Overview of consumables in applicable BMW parts catalogue
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00...
Overview of consumables in applicable BMW parts catalogue
NOTE:
TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .
- Thread
- Sensor ceramics
NOTE:
The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter.
- Screw the oxygen sensor monitor (1) in.

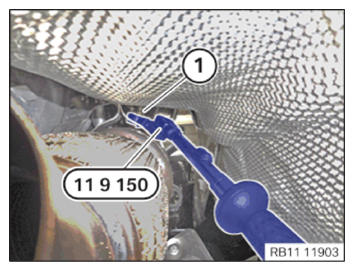

- Tighten the oxygen sensor monitor (1) with the special tools 0 493 751 (11 9 150)
and.TIGHTENING TORQUES SPECIFICATION
Oxygen sensor monitor on catalytic converter M18X1.5 tightening torque 50 Nm - Connect and lock the connector (1) and hook it to the carrier plate.
- Hook the cable (1) in the clamps (2).
