Install the cover of the steering assembly

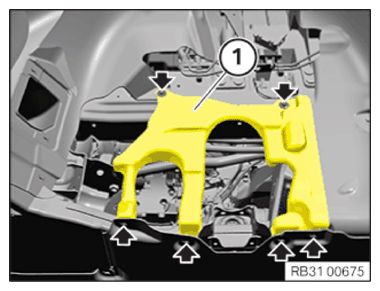

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Insert the cover (1).
• Tighten all bolts (arrows).

TIGHTENING TORQUES SPECIFICATION

Cover, steering unit
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
